Charcoal Metallic - 43554

7" Tall

8" Wide

All Aluminum

2 5/16" Adjustable Coupler

Single Drop Leg

Removable Jack Handle

Tapered Gooseneck

Polished Corner Caps

Pre-Painted Charcoal Metallic Exterior on Smooth Aluminum

(1) Fold Down Nose Access Door Centered in Gooseneck Nose

Single Side Wall Construction w/ 2 Air Cracks

Slatted Sides w/ Rounded Side Posts

Full Width Drop Partition

(1) 13' Rolling Gate Frame Assembly - Rolling Gate Rail w/ Settings every 12" from Drop

(2) Low Pro Center Gates - (1) Full Width Center Gate w/ Large Double Swing Latch in Rolling Gate Frame Assembly, (1) Full Width Center Gate w/ Large Double Swing Slam Latch w/ Outside Release to Start at 19' from Drop

11' Rear Compartment

(3) L.E.D. Dome Lights - (1) Per Compartment

(2) 18" Awning Lights @ Rear Door, (1) @ Curbside

(9) Marker Lights Each Top Rail

Tapered Wheel Wells up to Sides & Ends

(14) Outside Tie Rings - (6) @ Curbside, (6) @ Streetside, (1) @ Rear Post Right Above Rubber Bumper, (1) @ Rear Post Mid Way

Rancher Running Boards

52" Clear Slatted Solid Side Access Door w/ Reinforcement w/ Butterfly Latch

Full Swing/ Half Slider Slatted Solid Rear Gate w/ Safety Slam Latch

Anti-Rack Hardware on Rear Door

Grease Zerks

Enclosed Wiring

Fully Enclosed Tail Light Gusset

4" I-Beam Crossmembers on 9 5/8" Centers

Tread Plate Floor

Skid Plate under Rear of Trailer

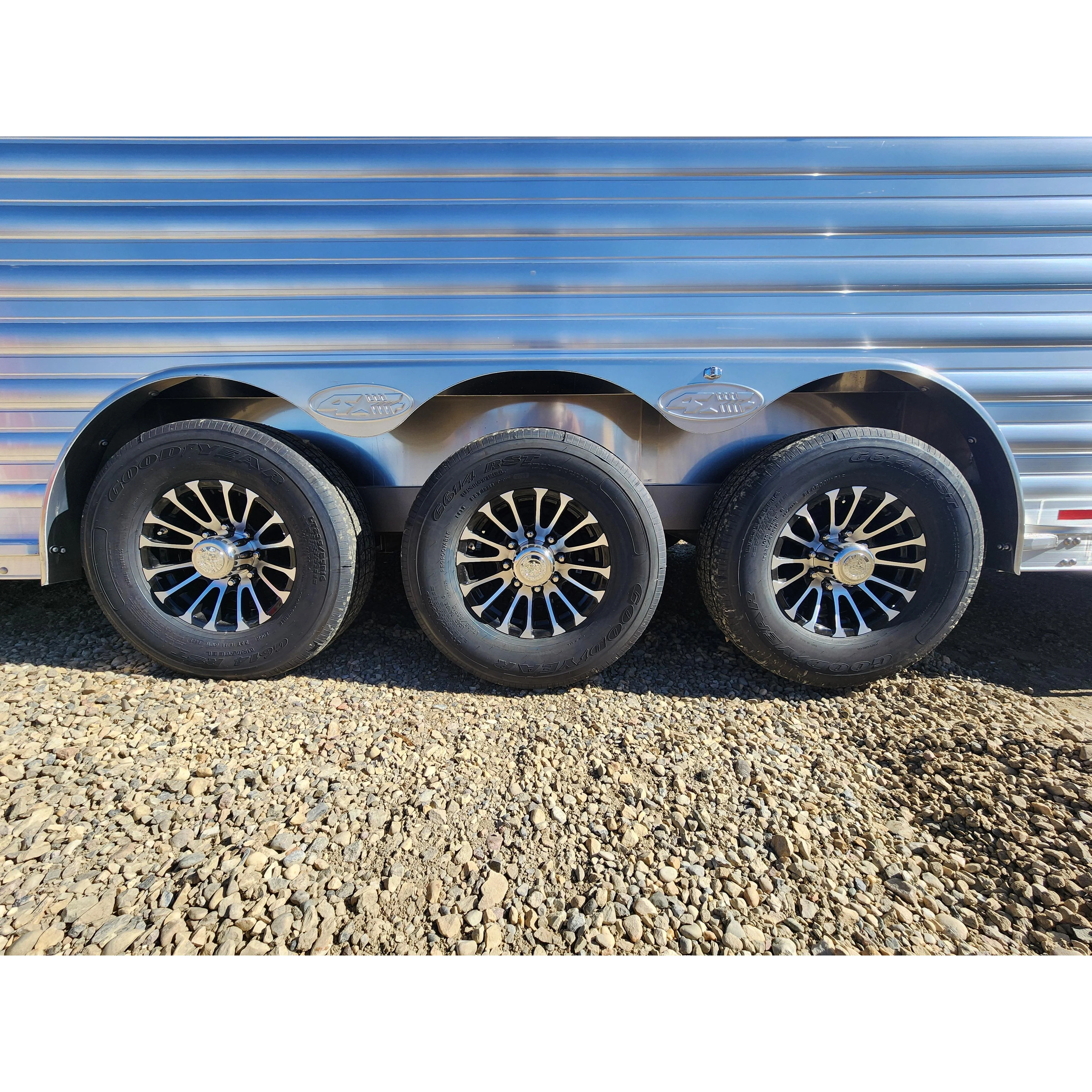

(3) 7,000lb Torsion 102" Axles w/ Electric Brakes

(7) 235/ 85R16 14 Ply Tires

16" Aluminum Wheels

8 Bolt Hubs

Rubber Dock Bumper

High Turn Signals

L.E.D. Lighting

D.O.T. Tape

Shipping/Curb/GV Weight (kg) - 2857 KG

G.V.W.R. (kg) -11768 KG



FOR MORE INFO CALL 1-877-946-9494
FINANCING AVAILABLE O.A.C.
